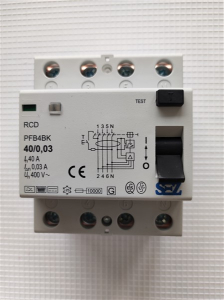

PFB2/16/0,01, SEZ áramvédő kapcsoló 2P 16A 0,01A

Versions PFB2 PFB4 PCHB2 PCHB4
Types A, AC
Number of poles 2 4 2 4
Rated current In A 16 - 63 16 - 63 16 - 100 16 - 100
Rated residual operating current IDn A 0,01 - 0,5 0,03 - 0,5 0,01 - 0,5 0,03 - 0,5
Rated voltage Un V 230 230/400 230 230/400
Rated frequency Hz 50 50 50/60 50/60
Rated res. making and
breaking capacity Im IΔm 630 630 800; 1000 for In=100A
Rated res. making and
breaking capacity IΔm
Max. conventional
back-up fuses GL In A 63; 80 for In=63 and 80A; 100 for In=100A
Rated conditional
short-circuit current Inc A 10000; 6000 for In=100A
Protection degree IP 20; IP40 after installation
Mounting position optional
Ambient temperature °C from -25°C to +40°C
Weight g 250 435 230 390
Terminal capacity mm2 1 to 25 1 to 35
