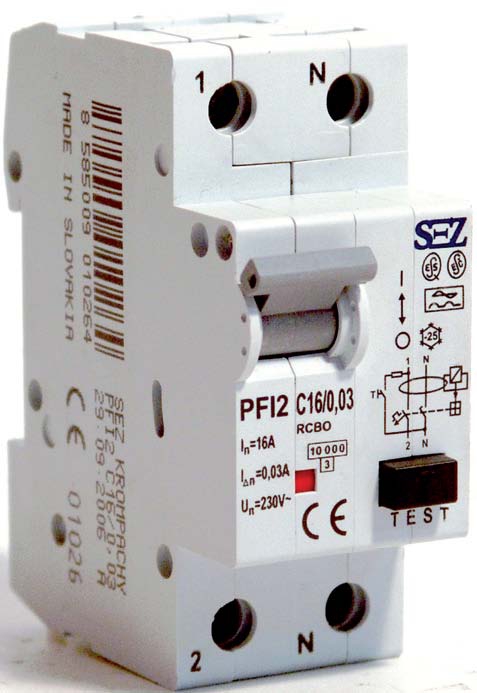

PFI2/20/0.01, SEZ áramvédő kapcsoló és kismegszakító kombi 2P 20A 0.01A B,C karakterisztika

No of poles 2 2 4
No of modules 2 3 4
Tripping characteristics B, C
Rated current In A 6,10,13,16, 25,32,40
Rated residual current IΔn A 0,01-0,5 up to 25 A 0,03-0,5 from 25 A 0,03; 0,1 ; 0,3; 0,5
Rated voltage Un V 230 230 400
Rated frequency Hz 50
Rated short circuit capacity Icn A 10 000
Selection class 3
Residual operating current type A – AC and pulsating DC current
Electrical endurance 4000
Mechanical endurance 10000
Degree of protection IP20, IP40 front
Mounting position optional
Ambient temperature °C -25 up to +40
Connecting clamps Headed/stirrupted
Terminal capacity mm2 1-25
