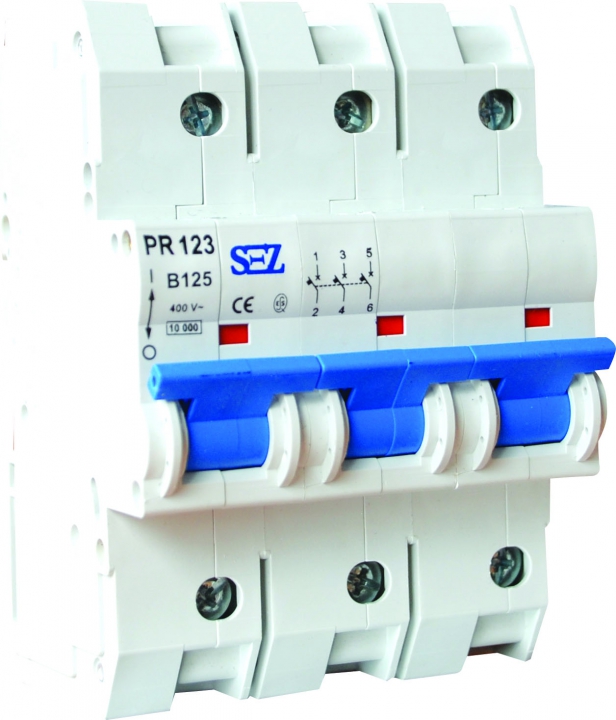

PR 123-B 80A, SEZ kismegszakító 3P 80A

Standards EN 60 898 - 1
Pole confi gurations 1; 1+N; 2; 3; 3+N; 4
Rated current In A 16, 20, 25, 32, 40, 50, 63, 80, 100, 125
Tripping chracteristics B, C, D
Rated voltage Un V 230, 230/400, 400
Rated frequency Hz 50
Breaking capacity Icn kA 15
Electrical endurance 4 000 cycles
Conductors mm2 1 - 50
Mounting on rail DIN 35x7,5 EN 60 715
Protection degree IP 20, IP 40 front
Ambient temperature -5°C up to +40°C
Approved according to label
Rated DC max 110DC (for one pole, τ=4ms)
