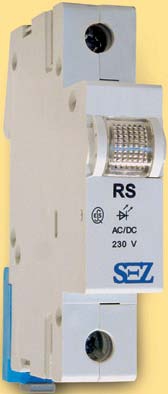

RSB230, SEZ moduláris jelzőlámpa kék

Standards EN 60 947-5-1
Number of poles 1
Rated voltage Un V AC 24, 48, 110, 230
DC 24, 48, 110, 220
Light source high capacity LED diode
Light source capacity W 0,8
Colours green - G, red - R, blue - B, transparent - T,
yellow - y
Illumination constant - RS
blinking - RSB
Terminal capacity mm2 0,75 - 6 for Cu conductors
Mounting on rail DIN 35x7,5 EN 60 715
on board
Degree of protection IP 20
IP 40 from the front panel
Ambient air temperature °C from -25 to +55
